    An object can display graphics in the following formats: BMP, PNG, JPG, GIF, TIFF, ICO, EMF, WMF. With the help of the "Picture" object, you can print your company logo, a photo of employee or any graphical information. On the toolbar, it looks like this:

    And on the report page, it looks like this:

    An object can show data from the following sources:

    • Data column - Picture from a data column. Name of the column is stored in the "DataColumn" property.
    • File with a picture - Picture is loaded from a file and is saved inside the report. Picture is stored in the "Image" property.
    • Hyperlink – Picture loaded via the link every time the report is built. Picture is not stored within the report. The address is stored in the property ImageLocation. This may be a URL or link to a local file. In the last case, you have to distribute the image file together with the report.

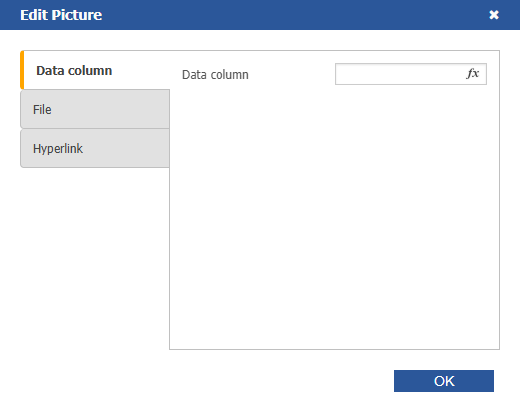

    In order to call a picture editor, double click on the object. In the editor, you can choose the data source for the picture:

    You can also set the image source in the object properties: DataColumn, Image, ImageLocation.

    You also can drag&drop a data column from the "Data" window into the report page. In this case the "Picture" object is created which contains a link to the column. The column you drag should have the "byte[]" data type.

    The "SizeMode" property determines how the picture is displayed:

    • AutoSize. The object gets the size of the picture.
    • CenterImage. The picture is centered inside the object.
    • Normal. The picture is displayed in the left corner of the object.
    • StretchImage. The picture is stretched to the size of the object.
    • Zoom. The picture is stretched to the size of the object in accordance with the aspect ratio.

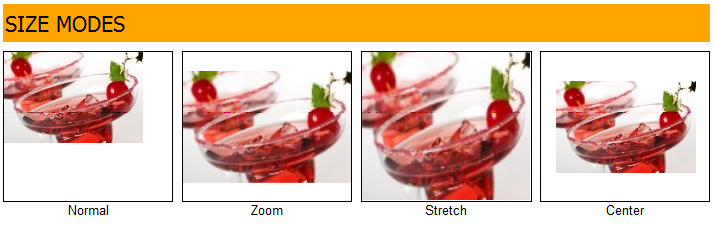

    The difference between modes is shown in the following picture:

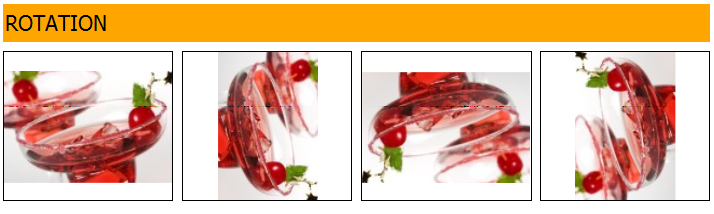

    It is possible to rotate the image by using the Angle property. Results of the pictures rotation by a predetermined angle shown below:

    The "Picture" object has the following properties:

    Property Description
    Angle The rotation angle, in degrees. Possible values for this property are 0, 90, 180, 270.
    SizeMode The size mode.
    Transparency The degree of transparency of the pictures. The property can have values between 0 and 1. The value 0 (by default) means that the picture is opaque.
    TransparentColor The color which will be transparent when displaying the picture.
    Image The picture.
    DataColumn The data column that this object is bound to.
    ImageLocation This property can contain name of the file or URL. The picture will be loaded from this location when building the report.
    Padding The padding, in pixels.
    ShowErrorImage Shows the “No picture” picture, in case when the picture is empty. This property makes sense to use if the picture is downloaded from the Internet.
