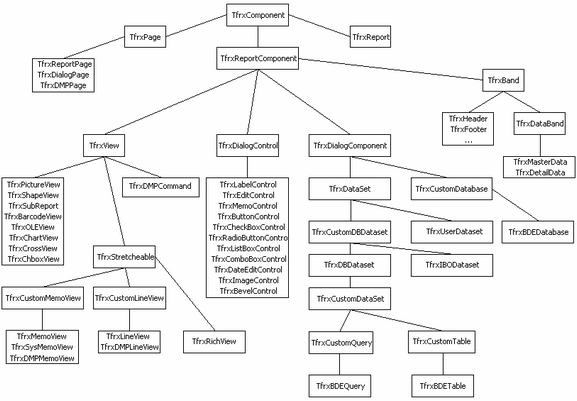

FastReport Classes Hierarchy
TfrxComponent is the base class for all FastReport components. Objects of this type have parameters, such as coordinates, size, font, visibility, and lists of subordinate objects. This class also contains methods which allow saving/restoring of object state to/from stream.
TfrxComponent = class(TComponent) protected procedure SetParent(AParent: TfrxComponent); virtual; procedure SetLeft(Value: Extended); virtual; procedure SetTop(Value: Extended); virtual; procedure SetWidth(Value: Extended); virtual; procedure SetHeight(Value: Extended); virtual; procedure SetFont(Value: TFont); virtual; procedure SetParentFont(Value: Boolean); virtual; procedure SetVisible(Value: Boolean); virtual; procedure FontChanged(Sender: TObject); virtual; public constructor Create(AOwner: TComponent); override; procedure Assign(Source: TPersistent); override; procedure Clear; virtual; procedure CreateUniqueName; procedure LoadFromStream(Stream: TStream); virtual; procedure SaveToStream(Stream: TStream); virtual; procedure SetBounds(ALeft, ATop, AWidth, AHeight: Extended); function FindObject(const AName: String): TfrxComponent; class function GetDescription: String; virtual; property Objects: TList readonly; property AllObjects: TList readonly; property Parent: TfrxComponent; property Page: TfrxPage readonly; property Report: TfrxReport readonly; property IsDesigning: Boolean; property IsLoading: Boolean; property IsPrinting: Boolean; property BaseName: String; property Left: Extended; property Top: Extended; property Width: Extended; property Height: Extended; property AbsLeft: Extended readonly; property AbsTop: Extended readonly; property Font: TFont; property ParentFont: Boolean; property Restrictions: TfrxRestrictions; property Visible: Boolean; end;
Clear– clears object contents and deletes all its child objects.
CreateUniqueName– creates unique name for object placed into report.
LoadFromStream– loads object contents and all its child objects from stream.
SaveToStream– saves object to stream.
SetBounds– set object coordinates and size
FindObject– searches for object with specified name among child objects.
GetDescription– returns object’s description.
The following methods are called when modifying corresponding properties. If additional handling is needed, you can override them:
The following properties are defined in
Objects– list of child objects;
AllObjects– list of all subordinate objects;
Parent– link to parent object;
Page– link to report page, which object belongs to;
Report– link to report, which object belongs to;
IsDesigning– “True,” if designer is running;
IsLoading– “True,” if object is being loaded from stream;
IsPrinting– “True”, if object is being printed out;
BaseName– object basic name. This value is used in
Left– object X coordinate (relatively to parent);
Top- object Y coordinate (relatively to parent);
Width– object width;
Height– object height;
AbsLeft– X object absolute coordinate;
AbsTop– Y object absolute coordinate;
Font– object font;
ParentFont– if “True,” then uses parent object font settings;
Restrictions– set of flags, which restrict one or another object operation;
Visible– object visibility.
The next basic class is
TfrxReportComponent. Objects of this type can be placed into report design. This class contains
Draw method for object drawing as well as
AfterPrint methods, which are called on report running.
TfrxReportComponent = class(TfrxComponent) public procedure Draw(Canvas: TCanvas; ScaleX, ScaleY, OffsetX, OffsetY: Extended); virtual; abstract; procedure BeforePrint; virtual; procedure GetData; virtual; procedure AfterPrint; virtual; function GetComponentText: String; virtual; property OnAfterPrint: TfrxNotifyEvent; property OnBeforePrint: TfrxNotifyEvent; end;
Draw method is called on object drawing. Parameters are the following:
Canvas – canvas;
Scale – scale by X-axis and Y-axis;
Offset – offset relatively canvas edges.
BeforePrint method is called right before object handling (during report building process). This method saves object state.
GetData method is called to load data into object.
AfterPrint is called after object handling. This method restores object state.
TfrxDialogComponent class is basic one for writing non-visual components, which can be placed to dialogue form in report.
TfrxDialogComponent = class(TfrxReportComponent) public property Bitmap: TBitmap; property Component: TComponent; published property Left; property Top; end;
TfrxDialogControl class is basic one for writing common control, which can be placed on a dialogue form in report. This class contains a large number of general properties and events shared by most common controls.
TfrxDialogControl = class(TfrxReportComponent) protected procedure InitControl(AControl: TControl); public property Caption: String; property Color: TColor; property Control: TControl; property OnClick: TfrxNotifyEvent; property OnDblClick: TfrxNotifyEvent; property OnEnter: TfrxNotifyEvent; property OnExit: TfrxNotifyEvent; property OnKeyDown: TfrxKeyEvent; property OnKeyPress: TfrxKeyPressEvent; property OnKeyUp: TfrxKeyEvent; property OnMouseDown: TfrxMouseEvent; property OnMouseMove: TfrxMouseMoveEvent; property OnMouseUp: TfrxMouseEvent; published property Left; property Top; property Width; property Height; property Font; property ParentFont; property Enabled: Boolean; property Visible; end;
When writing your own custom control element, you should inherit from this class, transfer required properties to “published” section, and then specify new properties for your common control. Control element writing will be discussed in detail in the next chapter.
TfrxView class is basic one for most components, which can be placed on the report design page. Objects of this type have parameters such as Frame and Fill, and also can be connected to a data source. Most FastReport standard objects are inherited from this class.
TfrxView = class(TfrxReportComponent) protected FX, FY, FX1, FY1, FDX, FDY, FFrameWidth: Integer; FScaleX, FScaleY: Extended; FCanvas: TCanvas; procedure BeginDraw(Canvas: TCanvas; ScaleX, ScaleY, OffsetX, OffsetY: Extended); virtual; procedure DrawBackground; procedure DrawFrame; procedure DrawLine(x, y, x1, y1, w: Integer); public function IsDataField: Boolean; property BrushStyle: TBrushStyle; property Color: TColor; property DataField: String; property DataSet: TfrxDataSet; property Frame: TfrxFrame; published property Align: TfrxAlign; property Printable: Boolean; property ShiftMode: TfrxShiftMode; property TagStr: String; property Left; property Top; property Width; property Height; property Restrictions; property Visible; property OnAfterPrint; property OnBeforePrint; end;
The following methods are defined in this class:
BeginDraw- method is called from
Drawmethod and calculates integer-valued coordinates and drawing area sizes. Calculated values are presented as
FDYvariables. Frame width (it is placed in
FFrameWidth) is also calculated;
DrawBackground- draws object background;
DrawFrame- draws object frame;
DrawLine– draws line with specified coordinates and width;
IsDataFieldreturns “True,” if
DataFieldproperties contain nonempty values.
One can refer to the following properties after calling
FFrameWidthare object frame coordinates, sizes and width calculated according to Scale and Offset parameters;
FScaleYare scales, which are copies of ScaleX and ScaleY parameters from
FCanvasis canvas, which is a copy of Canvas parameter from
Following properties, which are general for most report objects, are defined in this class:
BrushStyle– object filling style;
Color– object filling color;
DataField- data field name, which object is connected to;
DataSet- data source;
Frame– object frame;
Align- object aligning relatively to its parent;
Printable– defines whether given object should be printed out;
ShiftModeis object shifting mode in cases when stretchable object is placed over given one;
TagStr- field for user information storage.
TfrxStretcheable class is basic one for writing components, which modify their height depending on data placed in it.
TfrxStretcheable = class(TfrxView) public function CalcHeight: Extended; virtual; function DrawPart: Extended; virtual; procedure InitPart; virtual; published property StretchMode: TfrxStretchMode; end;
Objects of given class can be stretched, and also "broken" into pieces in cases when object does not find room on output page. At the same time, object is displayed piecemeal until all its data is displayed.
Following methods are defined in this class:
CalcHeightis to calculate and return object height according to data placed in it;
InitPartis called before object splitting;
DrawPartredraws next data chunk placed in object. “Return value” is value of unused space where it was impossible to display data.
