Connecting the map layer to data

Most reports use the "Map" object to display analytical data, for example sales levels in various countries. So a map layer must be connected to a data source using the map object editor window. Select the layer from the layers tree and switch to the "Data" tab. Data appropriate for the map layer type must be provided:

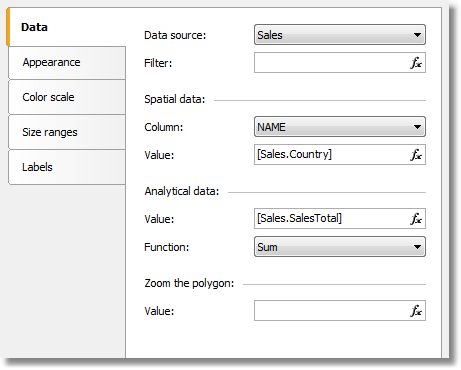

• for map layer type "ESRI shapefile" the "Data" tab looks like:

The data required is:

• name (eg: the country name);
• numeric value (eg: sales volume in this country).

For example, a "Sales" data source may have this data:

Country	SalesTotal
USA	500000
Germany	1200000
Russia	300000

Set up the "Data" tab in the following way:

• data source - Sales;

• spatial data, column name - select the column containing country names; usually this is the NAME column;

• spatial data, value - [Sales.Country];

• analytical data, value - [Sales.SalesTotal];
• analytical data, function - Sum; this function is used if you have several values per country.

The "Zoom the polygon" edit box allows zooming of the polygon with a given name, so it occupies the whole "Map" object workspace. For example, to zoom Germany on the world map, type "Germany" (with quotes) in this edit box.

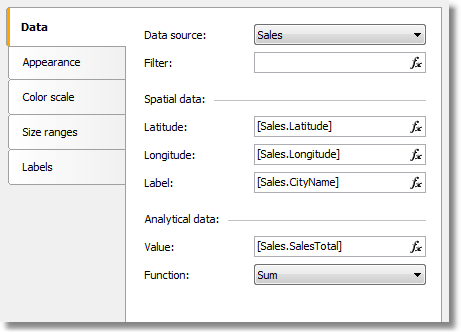

• for map layer type "geodata from an application" the "Data" tab looks like:

And the data required is:

• spatial data - latitude and longitude;
• label (eg: a city name);
• numeric value (eg: sales volume in this city).

For example, a "Sales" data source may have this data:

Latitude	Longitude	CityName	SalesTotal
48.13641	11.57753	München	50000
50.94165	6.95505	Köln	36000

Set up the "Data" tab in the following way:

• the data source - Sales;
• spatial data, latitude - [Sales.Latitude];
• spatial data, longitude - [Sales.Longitude];
• spatial data, label - [Sales.CityName];
• analytical data, value - [Sales.SalesTotal];
• analytical data, function - Sum; this function is used if you have several values per city.
